New Isolated Single-Phase AC-DC Converter for Universal Input Voltage Ming-Rong Lee*, Lung-Sheng Yang†, and Chia-Ching Lin*

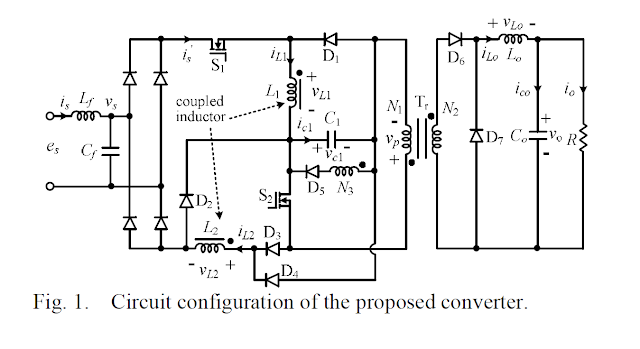

New Isolated Single-Phase AC-DC Converter for Universal Input Voltage Ming-Rong Lee*, Lung-Sheng Yang†, and Chia-Ching Lin* *†Dept. of Electrical Engineering, Far East University, Tainan City, Taiwan Abstract This paper investigates a new isolated single-phase AC-DC converter, which integrates a modified AC-DC buck-boost converter with a DC-DC forward converter. The front semi-stage is operated in discontinuous conduction mode (DCM) to achieve an almost unity power factor and a low total harmonic distortion of the input current. The rear semi-stage is used for step-down voltage conversion and electrical isolation. The front semi-stage uses a coupled inductor with the same winding-turn in the primary and secondary sides, which is charged in series during the switch-on period and is discharged in parallel during the switch-off period. The discharging time can be shortened. In other words, the duty ratio can be extended. This semi-stage can be operated in a larger duty-ratio range than the conventional AC-DC buck-boost converter for DCM operation. Therefore, the proposed converter is suitable for universal input voltage (90~264 Vrms) and a wide output-power range. Moreover, the voltage stress on the DC-link capacitor is low. Finally, a prototype circuit is implemented to verify the performance of the proposed converter.
 LINK
http://jpe.or.kr/archives/view_articles.asp?seq=760
